Part Number: AXAC-CH8
Details

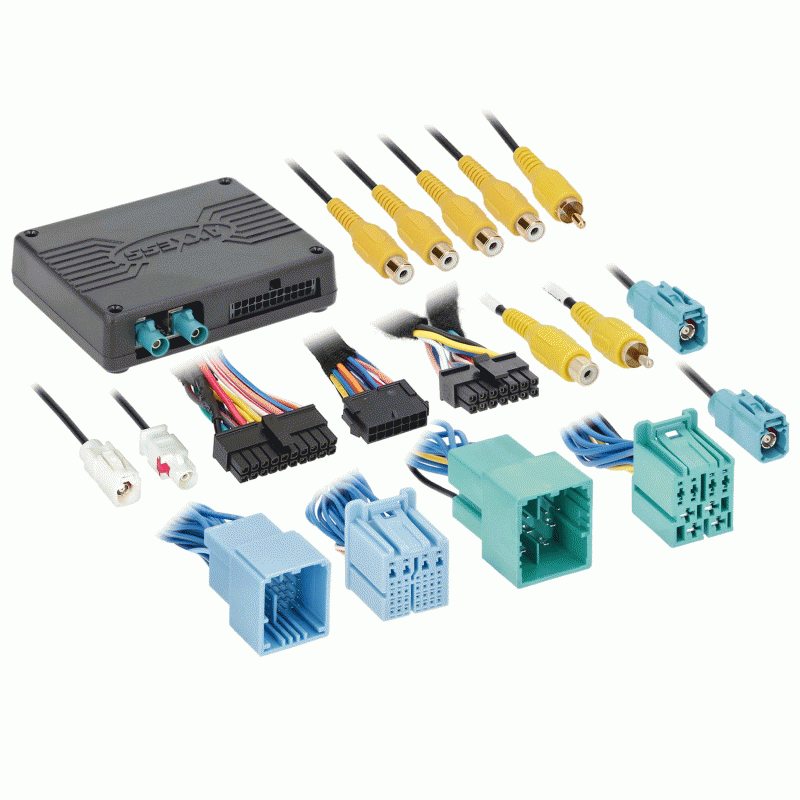

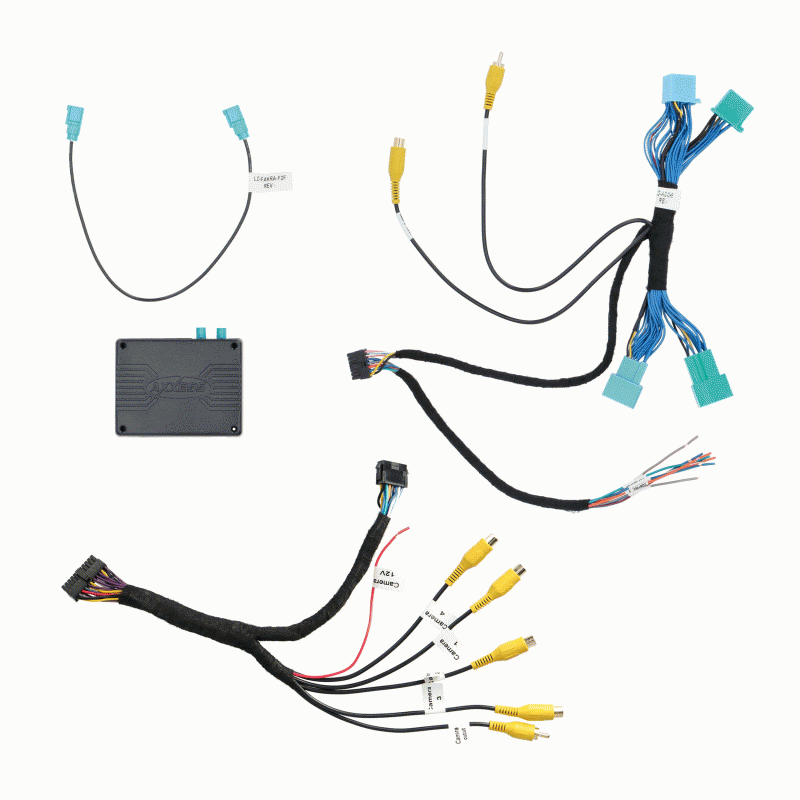

Looking to add a backup camera or any CAN-activated camera to your factory radio screen? Axxess offers a plug-n-play interface, AXAC, for select vehicle applications that allow you to add up to 4 CAN-activated cameras. The AXAC package includes the interface and vehicle-specific harness. Check our Vehicle Fit Guide to see if an AXSC is available for your vehicle, as these products are dependent on the vehicle application.
- To be used when adding cameras to an OEM screen
- (4) Camera inputs
- Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
- Reverse signal trigger generated via CAN bus communication of the vehicle
- Turn signal trigger generated via CAN bus communication of the vehicle
- (1) Programmable camera control wire (configured through the Axxess Updater program)
- Can also be manually controlled and used along with an aftermarket radio
- VSS (Vehicle Speed Sense) input and output
- Micro-B USB updatable
Applications
- Dodge
- Durango 2023-Up , with Uconnect® & 10.1” screen
- Jeep
- Wrangler(JL/JT) 2024-Up , with Uconnect® & 12.3” screen
- RAM
- 1500 (DT) 2023-Up , with Uconnect® & 12” screen
