Part Number: AXAC-FD1
Details

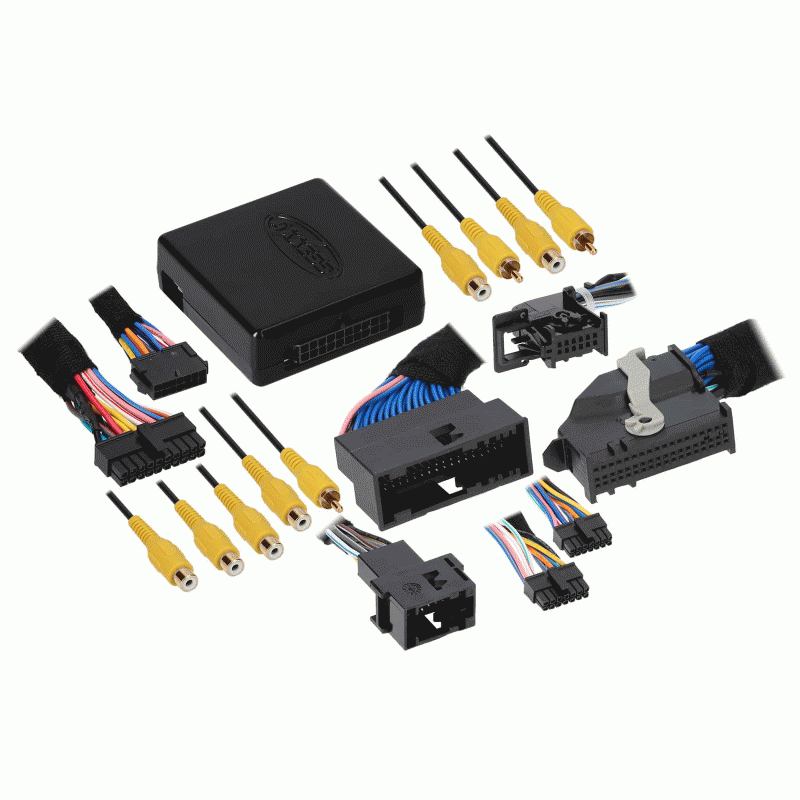

Looking to add a backup camera or any CAN-activated camera to your factory radio screen? Axxess offers a plug-n-play interface, AXAC, for select vehicle applications that allow you to add up to 4 CAN-activated cameras. The AXAC package includes the interface and vehicle-specific harness. Check our Vehicle Fit Guide to see if an AXSC is available for your vehicle, as these products are dependent on the vehicle application.
- To be used when adding cameras to an OEM screen
- (4) Camera inputs
- Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
- Reverse signal trigger generated via CAN bus communication of the vehicle
- Turn signal trigger generated via CAN bus communication of the vehicle
- (4) Programmable camera control wires (configured through the Axxess Updater program)
- Can also be manually controlled and used along with an aftermarket radio
- VSS (Vehicle Speed Sense) input and output
- Micro-B USB updatable
- Retains backup camera
Applications
- Ford
- Bronco Sport 2022-2023 ,
- Bronco 2022-2023 ,
- Escape 2013-2022 , 4.2” / 8” (or 6.5”) Display Models
- Edge 2011-2020 , 4.2” / 8” (or 6.5”) Display Models
- F-150/250 2013-2020 , 4.2” / 8” (or 6.5”) Display Models
- Focus 2012-2018 , 4.2” / 8” (or 6.5”) Display Models
- Fusion 2013-2019 , 4.2” / 8” (or 6.5”) Display Models
- Maverick 2022-2023 ,
- Mustang 2015-2023 , 4.2” / 8” (or 6.5”) Display Models
- Ranger 2019-2023 , 4.2” / 8” Display Models
- Transit 2014-2018 , 4.2” / 6.5” Display Models
- Transit Connect 2015-2018 , 4.2” / 8” (or 6.5”) Display Models
