Part Number: AXAC-CH7
Details

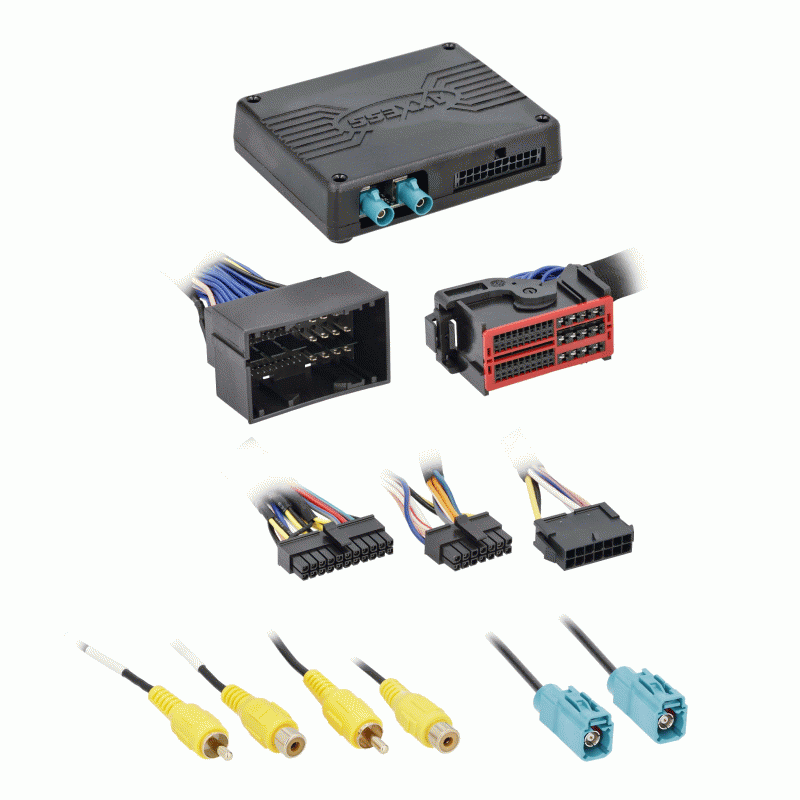

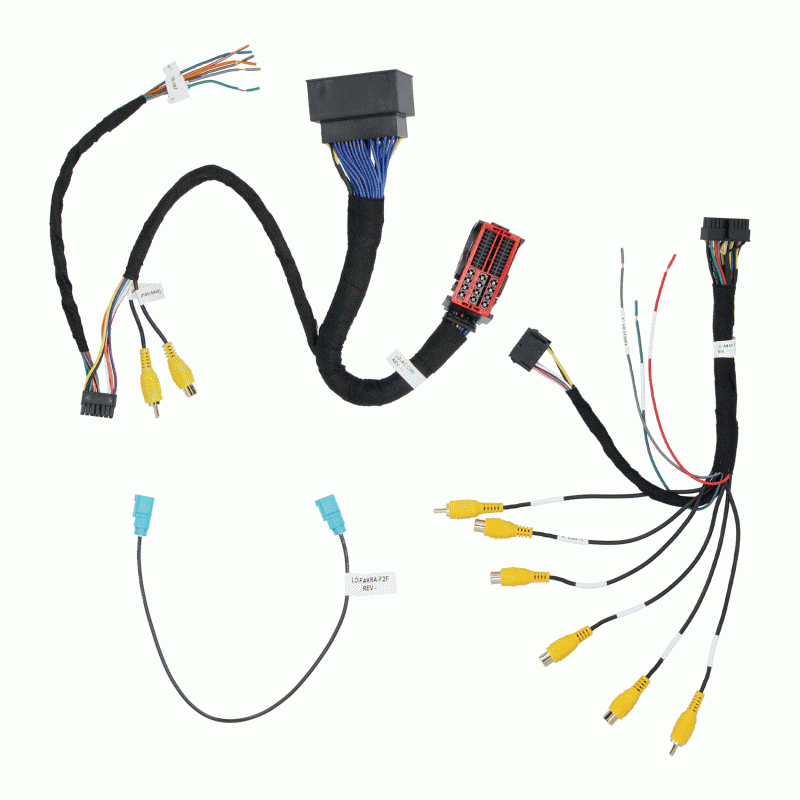

Looking to add a backup camera or any CAN-activated camera to your factory radio screen? Axxess offers a plug-n-play interface, AXAC, for select vehicle applications that allow you to add up to 4 CAN-activated cameras. The AXAC package includes the interface and vehicle-specific harness. Check our Vehicle Fit Guide to see if an AXSC is available for your vehicle, as these products are dependent on the vehicle application.
- To be used when adding cameras to an OEM screen
- (4) Camera inputs
- Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
- Reverse signal trigger generated via CAN bus communication of the vehicle
- Turn signal trigger generated via CAN bus communication of the vehicle
- (4) Programmable camera control wires (configured through the Axxess Updater program)
- Can also be manually controlled and used along with an aftermarket radio
- VSS (Vehicle Speed Sense) input and output
- Micro-B USB updatable
- Retains backup camera
Applications
OEM CAMERA RETENTION
- Jeep
- Wrangler(JL/JT) 2018.5-2023 ,
- RAM
- 1500 / 2500 / 3500 Classic 2019-2023 ,
ADD CAMERAS TO FACTORY RADIO
- Jeep
- Gladiator 2020-2023 , (w/ uConnect Radio)
- Wrangler (JL) 2018.5-2023 , (w/ uConnect Radio)
- RAM
- 1500 (DT) 2019-2021 , uConnect
- 1500 Classic 2019-2023 , uConnect
