Part Number: AXAMP-CH5

Details

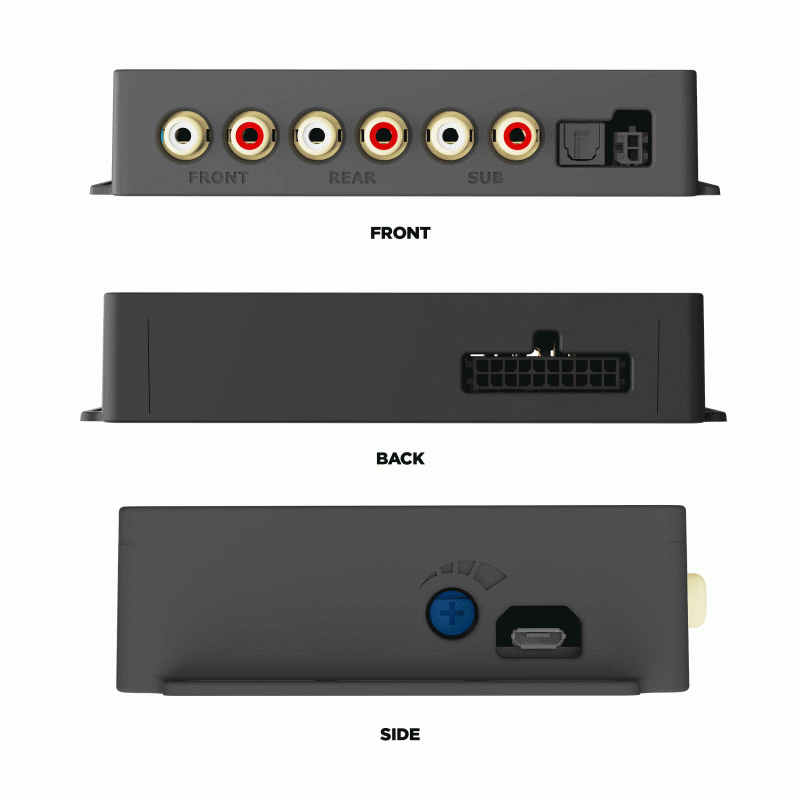

This vehicle-specific 6-channel amplifier integration interface from Axxess enables the installation of aftermarket amplifiers for enhanced sound quality while retaining the vehicle's original radio and features. This interface includes an external bass knob for additional audio output level adjustments.

Features:

• Designed for amplified and non-amplified systems
• Provides 6 channels of 5-volt RMS audio
• Non-fading full-range output (channels 5 and 6)
• Simple plug-n-play installation behind the radio
• No programming required
• Backup chime level adjustment
• Dual-colored LED feedback light
• Input: 50W per channel
• Amp turn-on trigger (DC): 250mA
• 2-channel S/PDIF out (front)
• 1-year warranty

Includes:

• AXAMP-CH5 Amplifier integration interface

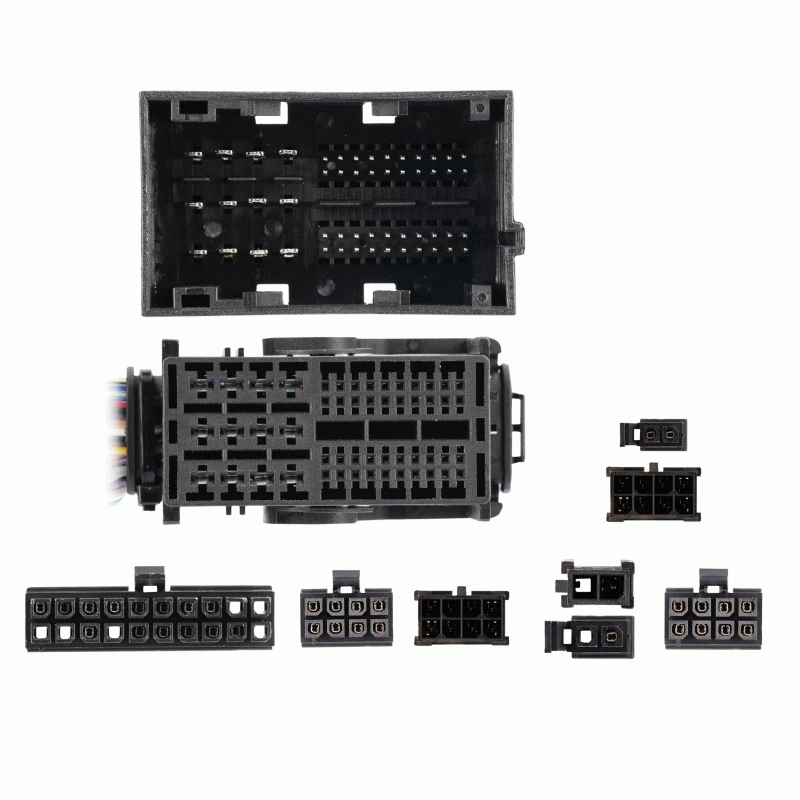

• AXAMP-CH5 interface harness
• AXAMP-CH5 vehicle T-harnes
• LD-DSP-RPAD
• LD-DSP-RPAD2
• Bass knob
• Instruction sheet

Applications

• CHRYSLER
  • 200 2015-2017 , Passenger Dash, Up High. (Behind Glovebox).
  • 300 2015-2023 , Drivers Dash Up High. (Above Knee Bolster Panel).
  • Pacifica 2021-2022 , without separate screen , Passenger Kick Panel.
  • Pacifica 2017-2020 , Passenger Kick Panel.
• DODGE
  • Challenger 2015-2023 , Driver Kick Panel.
  • Charger 2015-2023 , Driver Kick Panel.
  • Durango 2021-2022 , without separate screen , Passenger Kick Panel.
  • Durango 2014-2020 , Driver Side Trunk, Behind Wheel Well.
  • Viper 2015-2017 , Passenger Side Trunk Above Wheel Well.
• Fiat
  • 500× 2015-2017 , Right rear corner panel
• JEEP
  • Cherokee 2014-2020 , Passenger’s Kick Panel.
  • Compass 2017-2021 , Non-Amplified Models , Left rear corner panel
  • Gladiator 2020-2023 , Driver Knee Bolster.
  • Grand Cherokee 2014-2022 , Driver Side Trunk Area.
  • Renegade 2015-2019 , Left rear corner panel
  • Wrangler (JL) 2018-2023 , Driver Knee Bolster.
• RAM
  • 1500/2500/3500 2013-2021 , Driver Kick Panel.
