Part Number: AXAMP-CH8

Details

This vehicle-specific 6-channel amplifier integration interface from Axxess enables the installation of aftermarket amplifiers for enhanced sound quality while retaining the vehicle's original radio and features. This interface includes an external bass knob for additional audio output level adjustments.

Features:

• Designed for amplified and non-amplified systems
• Provides 6 channels of 5-volt RMS audio
• Non-fading full-range output (channels 5 and 6)
• Simple plug-n-play installation behind the radio
• No programming required
• Backup chime level adjustment
• Dual-colored LED feedback light
• Input: 50W per channel
• Amp turn-on trigger (DC): 250mA
• 2-channel S/PDIF out (front)
• 1-year warranty

Includes:

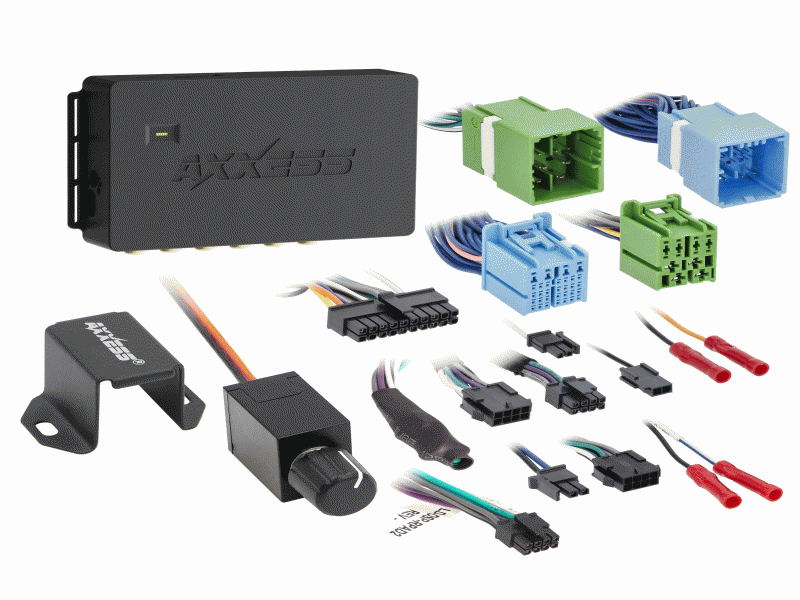

• AXAMP-CH8 Amplifier integration interface
• AXAMP-CH8 vehicle T-harnes
• LD-DSP-RPAD2
• Bass knob
• Instruction sheet

Applications

• CHRYSLER
  • Pacifica 2021-2022 , with separate screen , Passenger Kick Panel.
  • Voyager 2022-2022 , Passenger Kick Panel.
• DODGE
  • Durango 2021-2022 , with separate screen , Driver Kick Panel.
• JEEP
  • Compass 2022-2022 , Left rear corner panel
  • Gladiator 2024-2024 , Driver Knee Bolster.
  • Wrangler (JL) 2024-2024 , Driver Knee Bolster.
• RAM
  • 1500 2022-2022 , RFV radio , Under Driver’s seat
  • 2500/3500 2022-2022 , RFA/RFL radio , Under Driver’s seat
  • Promaster 2022-2022 , N/A
