Part Number: AXAMP-CH4

Details

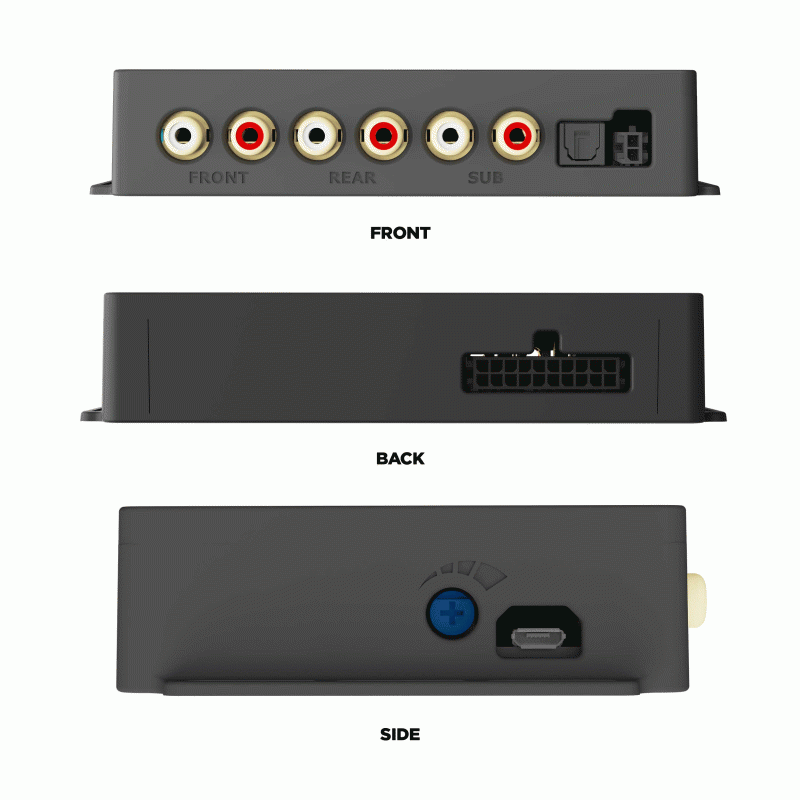

This vehicle-specific 6-channel amplifier integration interface from Axxess enables the installation of aftermarket amplifiers for enhanced sound quality while retaining the vehicle's original radio and features. This interface includes an external bass knob for additional audio output level adjustments.

Features:

• Designed for amplified and non-amplified systems
• Provides 6 channels of 5-volt RMS audio
• Non-fading full-range output (channels 5 and 6)
• Simple plug-n-play installation behind the radio
• No programming required
• Dual-colored LED feedback light
• Input: 50W per channel
• Amp turn-on trigger (DC): 250mA
• 2-channel S/PDIF out (front)
• 1-year warranty

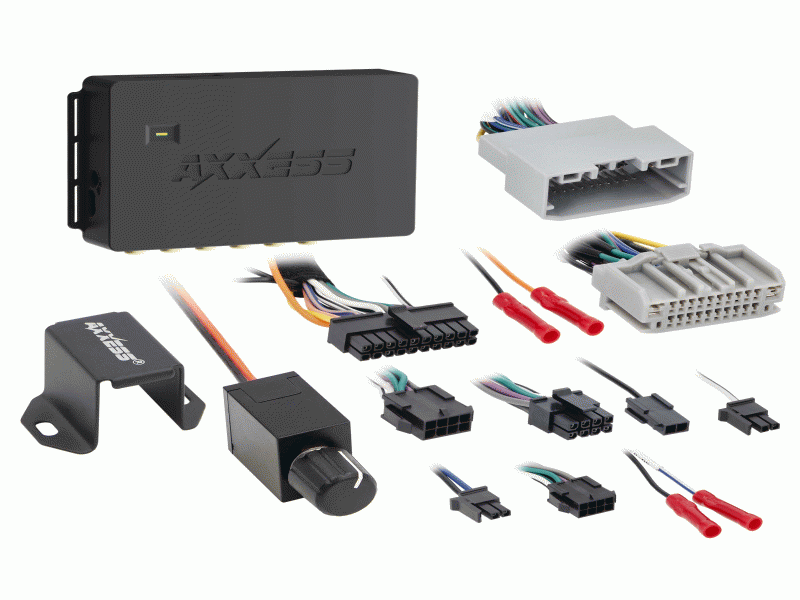

Includes:

• AXAMP-CH4 Amplifier integration interface
• AXAMP-CH4 vehicle T-harnes
• Bass knob
• Instruction sheet

Applications

• Chrysler
  • Town & Country 2008-2020
• DODGE
  • Caravan/Grand Caravan 2008-2020
  • Dart 2013-2016
  • Nitro 2007-2011
• Jeep
  • Grand Cherokee 2011-2013
  • Liberty 2008-2012
  • Wrangler (JK) 2007-2017
• RAM
  • 1500 2010-2012
