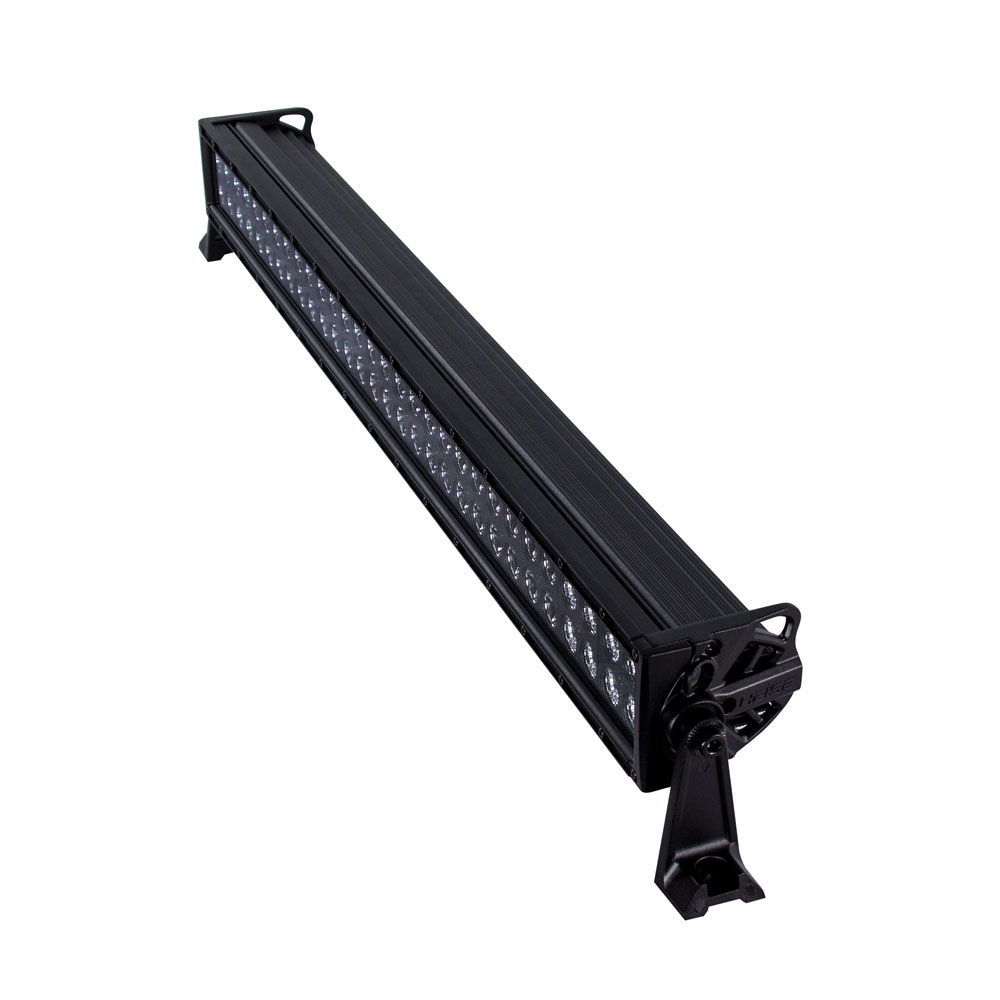

Part Number: HE-BDR30

SPECS
Input Voltage: 10-30V DC
Wattage: 180W (60-3W CREE LEDs)
Raw Lumens: 14000
Color Temperature: 6000K
Beam Pattern: Combo Flood 90°/ Spot 8°

CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 31.375in Brackets turned outward – 33.75in Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION
Operating Temperature: -40°C to +60°C

Current Consumption: 9.5 amps at 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
