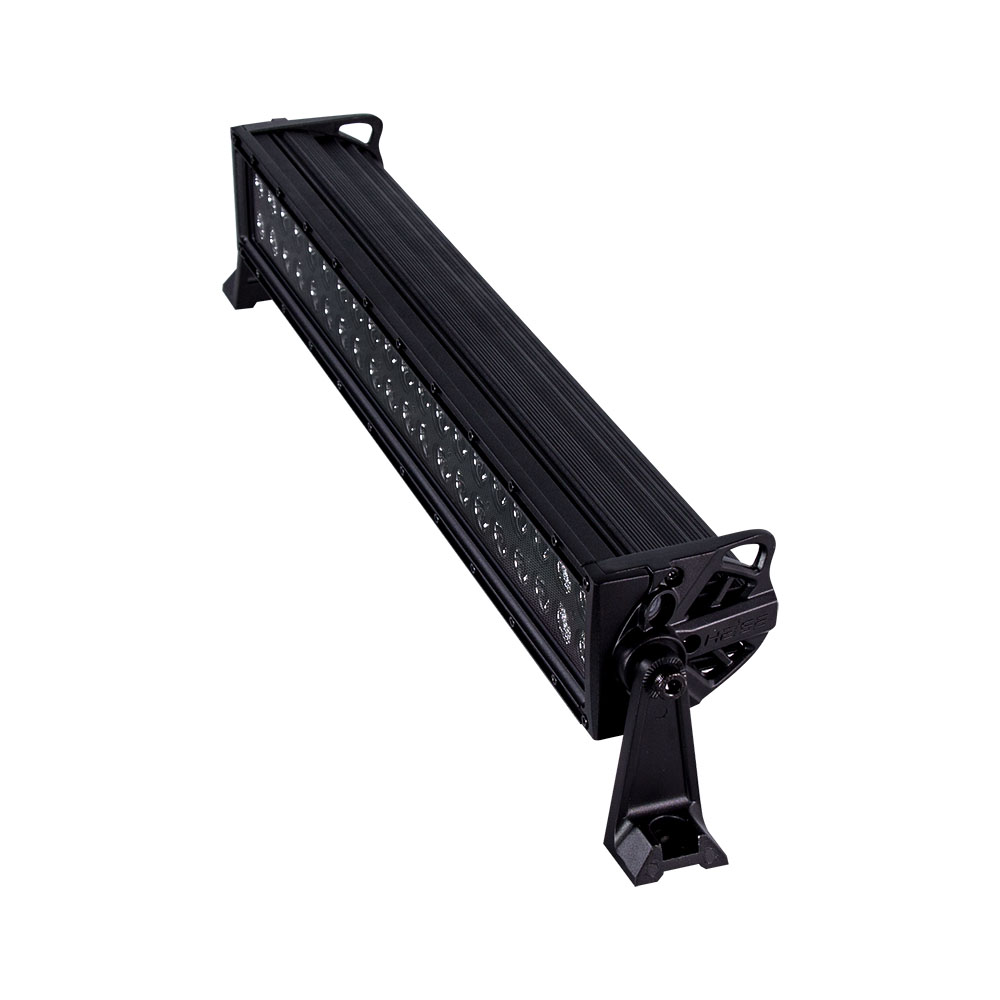

Part Number: HE-BDR22

SPECS
Input Voltage: 10-30V DC
Wattage: 120W (40-3W CREE LEDs)
Raw Lumens: 9600
Color Temperature: 6000K
Beam Pattern: Combo Flood 90°/ Spot 8°

CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 21.3125in
Brackets turned outward – 23.75in
Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION
Operating Temperature: -40°C to +60°C

Current Consumption: 6.3 amps at 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
