Part Number: AXAC-CH3
Details

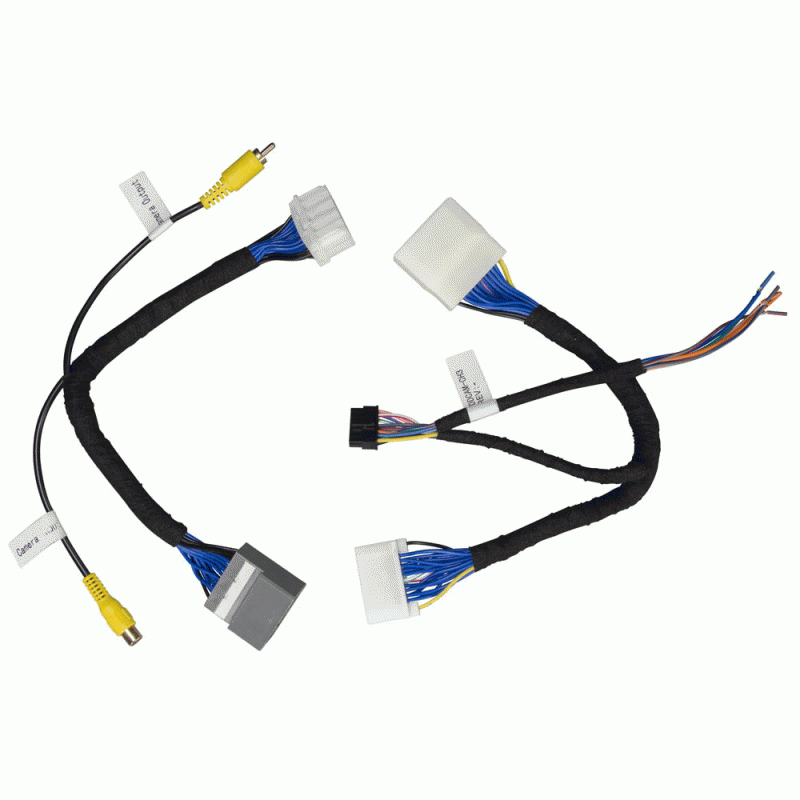

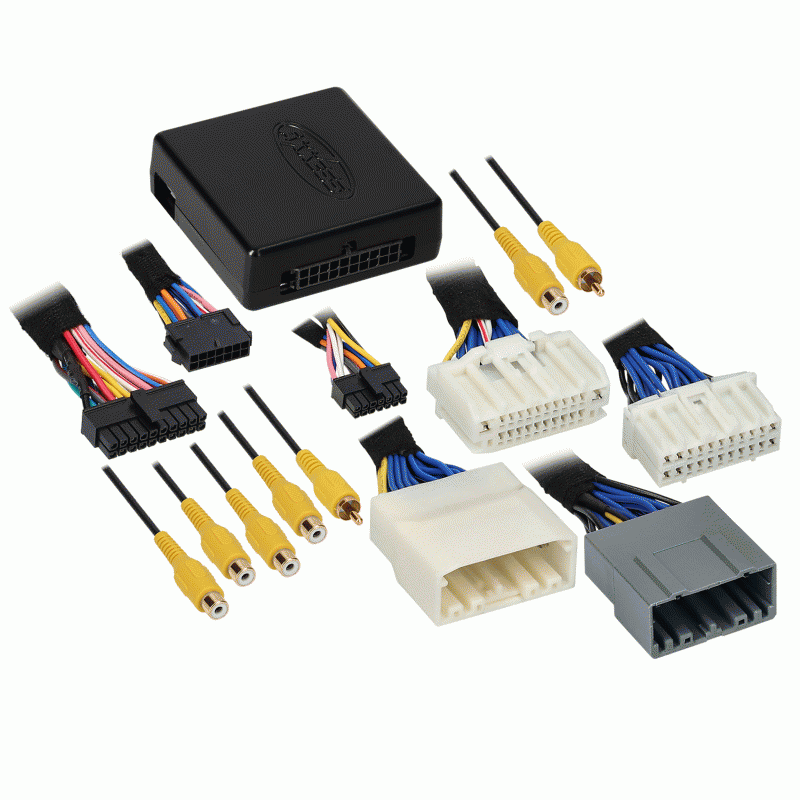

Looking to add a backup camera or any CAN-activated camera to your factory radio screen? Axxess offers a plug-n-play interface, AXAC, for select vehicle applications that allow you to add up to 4 CAN-activated cameras. The AXAC package includes the interface and vehicle-specific harness. Check our Vehicle Fit Guide to see if an AXSC is available for your vehicle, as these products are dependent on the vehicle application.
- To be used when adding cameras to an OEM screen
- (4) Camera inputs
- Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
- Reverse signal trigger generated via CAN bus communication of the vehicle
- Turn signal trigger generated via CAN bus communication of the vehicle
- (4) Programmable camera control wires (configured through the Axxess Updater program)
- Can also be manually controlled and used along with an aftermarket radio
- VSS (Vehicle Speed Sense) input and output
- Micro-B USB updatable
- Retains backup camera
Applications
- Chrysler
- 300 2011-2014 (1)
- Charger 2011-2014 (1)
- Journey 2011-2018 (1)
