Part Number: AXDSP-X

Brand: Axxess

Availability: In stock

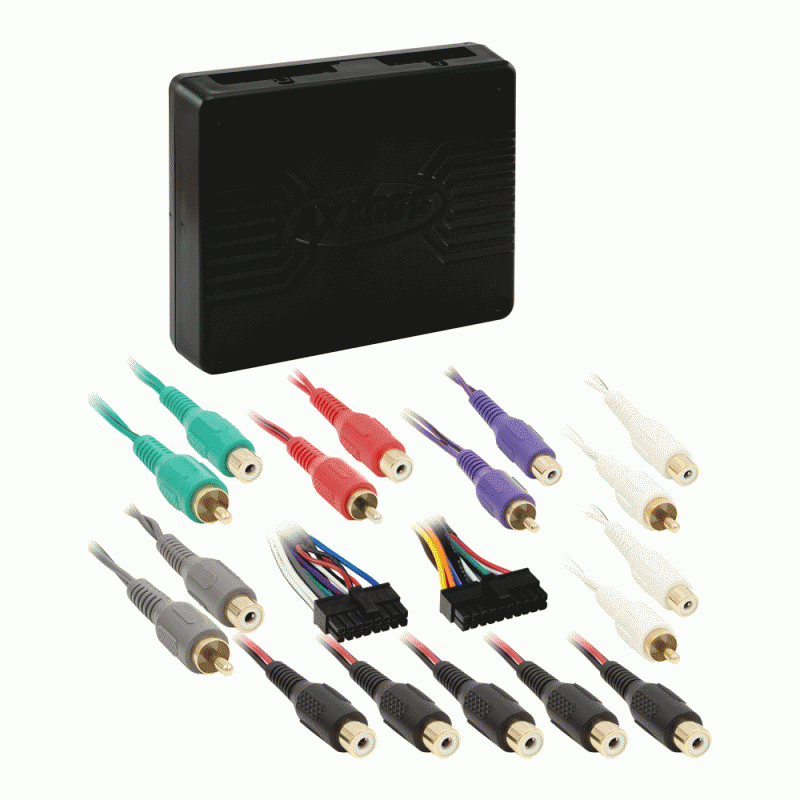

DSP PROCESSOR w/ CHIMES & DIGITAL AMP TURN-ON

$538.40

Qty.:

+ −

Add to wish list Add to compare list

Description

Details

Utilizing Axxess’s data interface technology, the AX-DSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. It already works with a wide range of vehicle applications and systems, including OE or aftermarket radios, and fixed level audio or analog audio, in addition to non-amplified vehicles that do not have chimes.

Specifications:

The AXDSP-X offers installers a fast, cost-effective solution for improving the sound system with 10 individually assigned output channels, the ability to password-protect your settings, and an easy-to-use smartphone app. It has an onboard digital amplifier turn-on capability with built-in technology to retain many of the vehicle features commonly lost when installing a DSP.

Complete Tuning Control
Installers will have full control to fine-tune each of the 10 channel outputs individually, controlled wirelessly via a free app available for smartphones and tablets. The app makes tuning easy with a 31-band graphic EQ and up to 10ms time delay for each channel, with independent high pass, low pass, and bandpass filters.

Retain Features with a Built-in Interface
Utilizing Axxess’s data interface technology, the AXDSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. Voice prompts, parking sensor chimes, and other factory chimes are retained with an adjustable volume control that many traditional DSPs cannot offer. This is a cost-effective solution for customers who want to retain their factory radio and improve their vehicle sound quality, while still retaining systems like SYNC or OnStar®.

One Solution, Many Applications
The AXDSP-X solution already works with a wide range of vehicle applications and systems, including OE or aftermarket radios, and fixed-level analog and/or digitally controlled amplified systems, in addition to non-amplified vehicles that do not have chimes. The AXDSP-X works with all the existing DSP T-harnesses and still offers the same easy installation behind the radio.

31-band graphic EQ on each channel with high pass, low pass, and bandpass filters
6 inputs and 10 individually assignable outputs
Independent equalization on each of the 6 outputs
Selectable slope (12, 24, 36, or 48db per octave)
Selectable Graphic or Parametric EQ
Independent equalization on each of the 10 outputs
Each channel can be delayed independently for up to 10ms
Chime control for GM/Chrysler vehicles
Clipping detection and limiting circuits Bass knob included
Retains OE voice prompts (Sync® and OnStar®)
Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
Settings adjusted wirelessly via a smart device application (tablet or mobile phone)
Easy behind the radio installation in most applications
Can be used with OE and aftermarket radios
Read, write, and store configurations for future recall
Password-protect feature is available in the mobile app
Micro “B” USB updatable
1-year limited warranty
