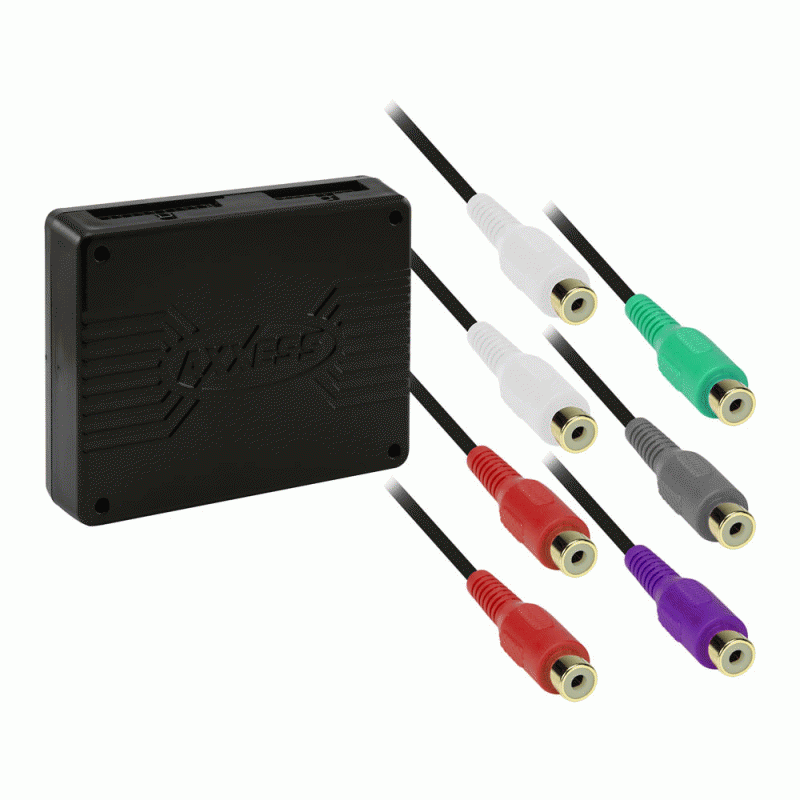

Part Number: AXDSP-L
Details
Not every sound system will utilize all the features of the AX-DSP, so we’ve created a Lite version to provide just the essentials, while still providing Axxess’s cutting-edge technology to retain vehicle functions. The new AX-DSP-LITE is a cost-effective and simple solution for upgrading a sound system when six channels of analog audio signal are desired, while still offering an easy installation behind the radio.
Specifications:
- 15 Band graphic EQ
- 4 inputs and 6 outputs, including front, rear, and subwoofer
- Independent equalization for front, rear, and sub
- Independent crossover for front, rear, and sub
- Selectable slope (12, 24, 36, or 48db per octave)
- Front and rear channels can be delayed independently up to 10ms
- Easy behind the radio installation in most applications
- Can be used with OE and aftermarket radios
- Chime control for GM/Chrysler vehicles
- Clipping detection and limiting circuits
- Internal header port for adding interface modules
- Bass knob included
- Retains OE voice prompts (SYNC® and OnStar®)
- Retains factory chimes including parking sensor and cross path detection alerts
- Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible with both Android and Apple devices
- Read, write, and store configurations for future recall
- Password protect feature available in the mobile app
- Micro-B USB updatable
Instructions
AXDSP-L_Product_Sheet.pdf
Video:
