Part Number: AXPIO-JL1

Details

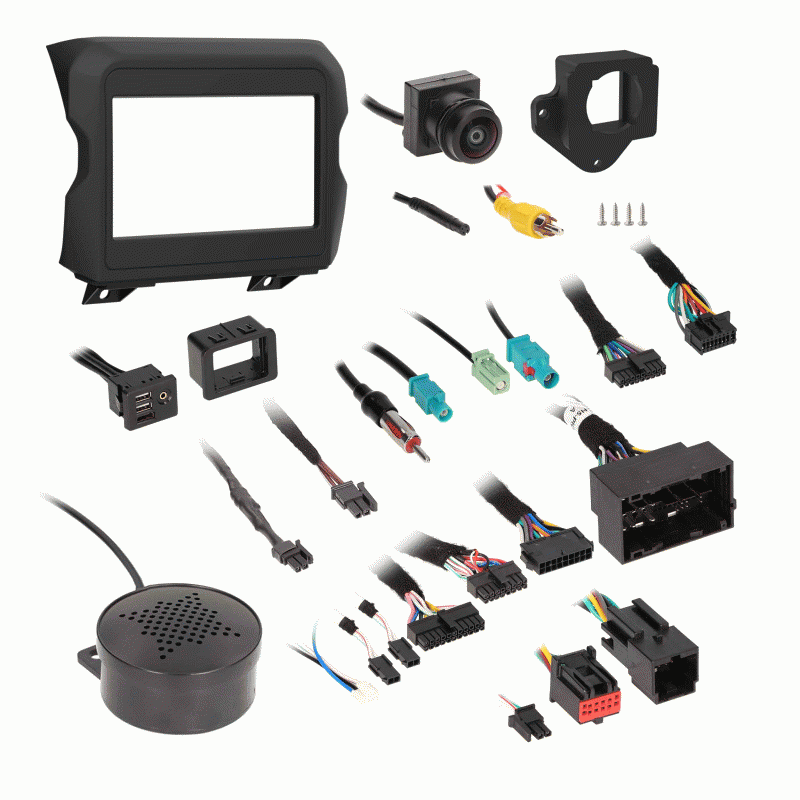

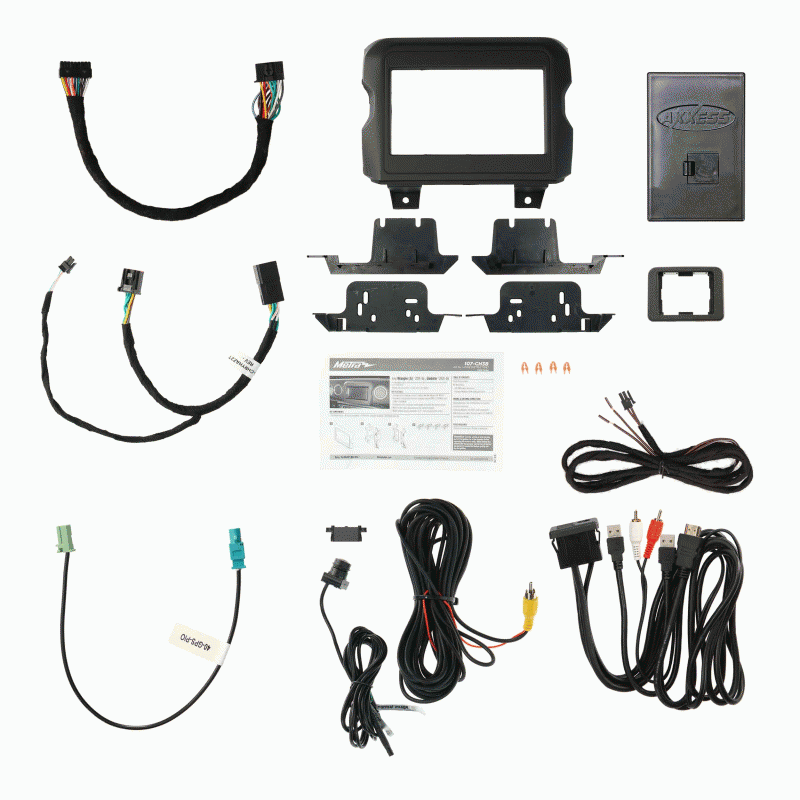

• This package includes a dash kit, interface with plug-n-play harnessing, antenna adaptor, USB/AUX/HDMI replacement panel, and direct OE backup camera replacement.
  • Designed for Pioneer DMH-W4600NEX/W4660NEX receivers (1) (will work with 9” touchscreens with the additional purchase of the Metra 109-UN02 dash kit)
  • Allows retention and adjustment of the factory personalization menu through the Pioneer radio:
    • Provides a visual view of HVAC and gauges on the Pioneer screen
    • Allows adjustment of HVAC functions through the Pioneer screen
  • Complete plug-n-play installation:
    • Includes dash kit with Axxess interface and vehicle-specific t-harness

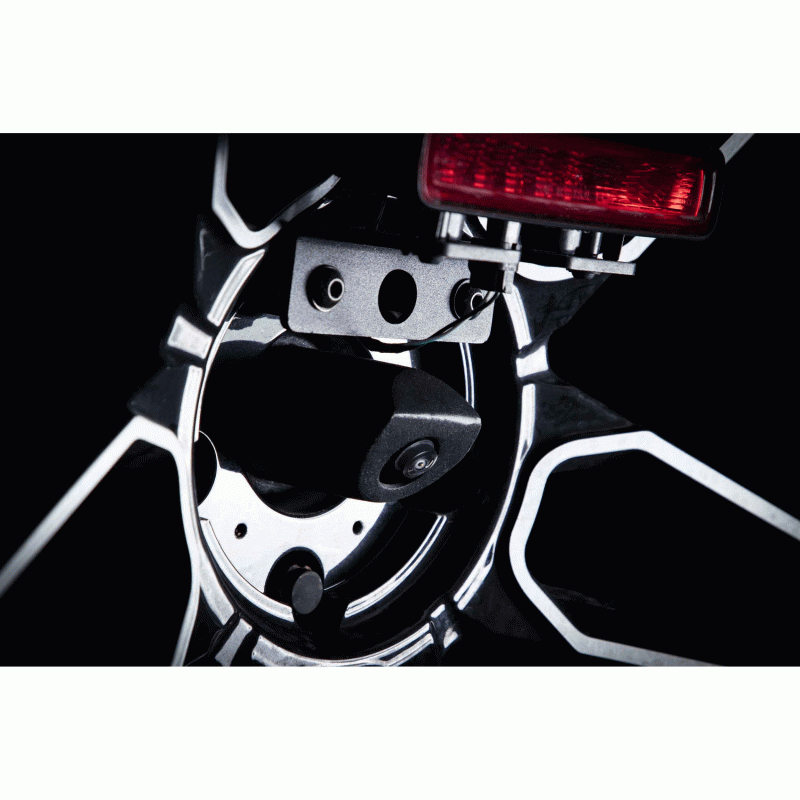

    • Includes iBEAM weather-resistant direct OE camera replacement rated IP68 (not applicable on Jeep Wrangler Gladiator)

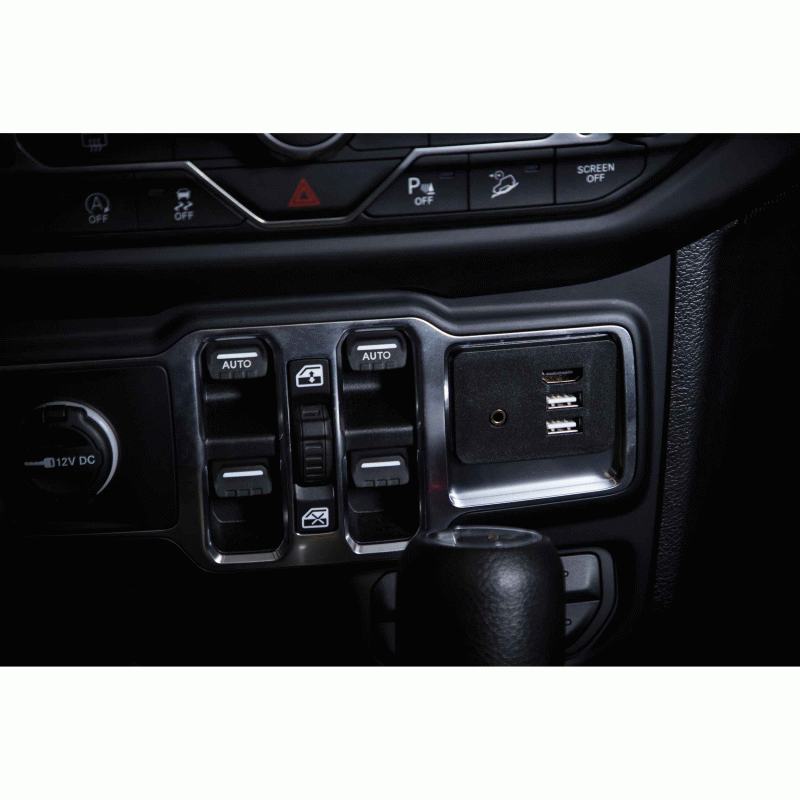

    • Includes USB/AUX/HDMI® replacement panel (3ft.)
    • Includes radio antenna adaptor for GPS
  • Provides a built-in STOP/START engine override (if equipped)
  • Provides accessory power (12-volt 10-amp)
  • Provides NAV outputs (parking brake, reverse, speed sense)
  • Retains audio controls on the steering wheel
  • Works in both single and dual-zone vehicles
  • Retains safety chimes through offboard speaker
  • Designed for amplified or non-amplified vehicles
  • Micro-B USB updatable
  • Dash kit is painted scratch-resistant matte black to match the factory finish

  (1) Refer to radio manufacturer for most current models.

Applications

• Jeep
  • Wrangler 2018-Up

*The factory amp must be bypassed to use this interface.
