Part Number: AXDSPX-TY2
Details
- Includes a DSP (Digital Signal Processor)
- 31 Band graphic EQ
- 10 individually assignable outputs
- Independent equalization on each of the 10 outputs
- Independent high pass, low pass, and bandpass filters
- Each channel can be delayed independently up to 10ms
- Clipping detection and limiting circuits
- Designed for non-amplified models

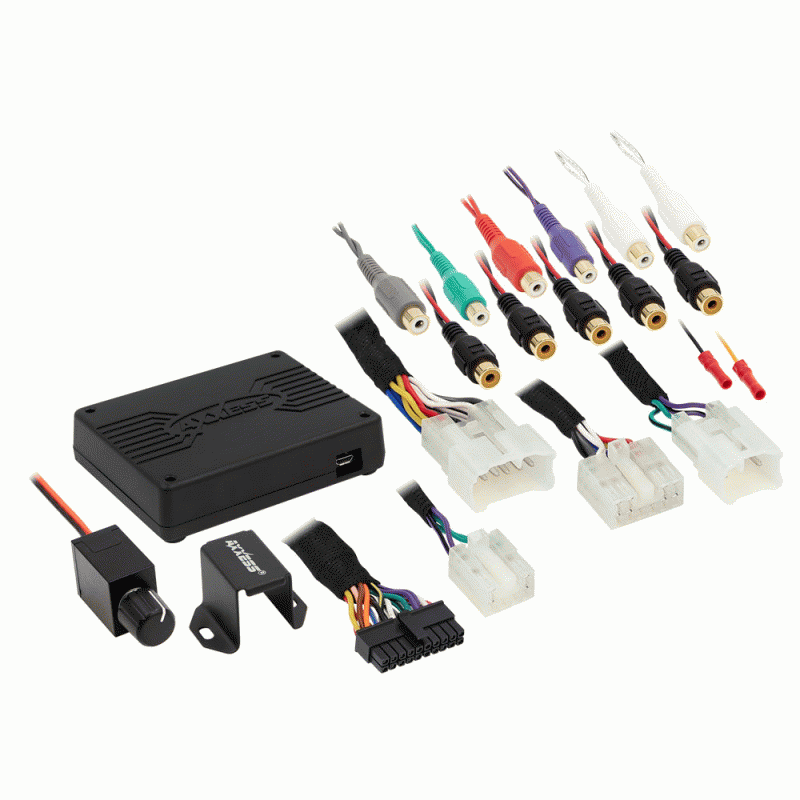

- Easy behind the radio installation with pre-wired harness
- Bass knob included for level control of subwoofer amp
- Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible with both Android™ and Apple® devices
- Read, write, and store configurations for future recall
- Password protect feature available in the mobile app
- Micro-B USB updatable
U.S. Patent 9,875,078
Applications
- Scion 2010-Up (all non-amplified)
- FR-S 2013-2016
- iA 2016
- iM 2016
- iQ 2012-2015
- tC 2010-2016
- xB 2010-2015
- xD 2010-2014
- Toyota 2010-Up (all non-amplified)
- 4Runner 2010-2017
- Avalon 2010-2017
- Camry 2010-2017
- Corolla 2010-2017
- Corolla iM 2017
- FJ Cruiser 2010-2014
- Highlander 2010-217
- Land Cruiser 2010-2017
- Matrix 2010-2014
- Prius 2010-2017
- Prius C 2012-2017
- Prius Plug-In 2012-2015
- Prius Prime 2017
- Prius V 2013-2017
- RAV4 2010-2017
- Sequoia 2010-2017
- Sienna 2010-2017
- Tacoma 2010-2017
- Tundra 2010-2017
- Venza 2010
- Yaris 2010
- Yaris iA 2017-2018
