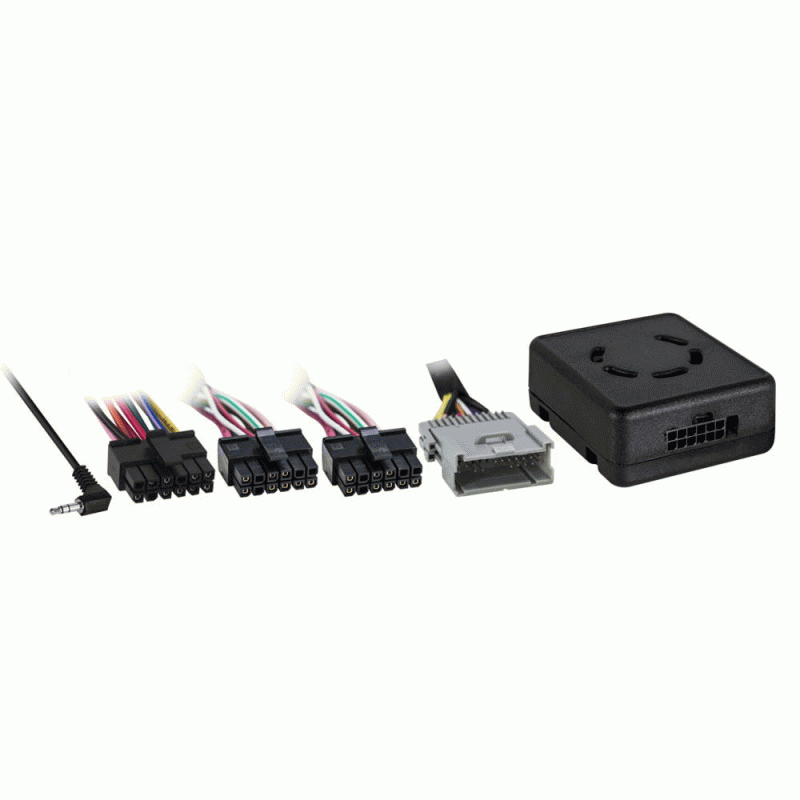

Part Number: AXDI-CL2
Details
- Provides accessory power (12-volt 10-amp)
- Retains R.A.P (retained accessory power
- Provides NAV outputs (parking brake / reverse / speed sense)
- Retains chimes through an onboard speaker
- Pre-wired ASWC-1 harness (ASWC-1 sold separately)
- Designed for non-amplified models or when bypassing a factory amp
- Retain audible blind spot detection system
- Micro B USB updatable
note 1: Always confirm the OEM system type FIRST by the vehicle codes as per the instruction sheet.
note 2: AXDI-CL2 works on Analog Bose but the audio can be loud without RCAs.
If it is Analog Bose they can hook up the blue/white on the harness and the amp will turn on and play.
Applications
- Buick
- Century 2004-2005
- Lacrosse 2005-2009
- Rainier 2005-2007
- Rainier 2004-2004 * (1)
- Regal 2004
- Rendezvous 2002-2007
- Terraza 2005-2007
- Cadillac
- Escalade / Escalade ESV & EXT 2003-2006 * (3)
- Chevrolet
- Avalanche 2003-2006 * (2)
- Cavalier 2000-2005
- Colorado 2004-2012
- Corvette 2005-2013
- Express 2003-2007
- Impala 2000-2005
- Kodiak C4500-C8500 2003-2009
- Malibu 2001-2003
- Malibu Classic 2004-2005
- Monte Carlo 2000-2005
- Silverado 2003-2006 * (2)
- Silverado Classic 2007 * (2)
- SSR 2003-2006
- Suburban 2003-2006 * (2)
- Tahoe 2003-2006 * (2)
- Trailblazer 2007-2009
- Trailblazer 2002-2006 * (1)
- Uplander 2005-2008
- GMC
- Canyon 2004-2012
- Envoy 2007-2009
- Envoy 2002-2006 * (1)
- Savana 2003-2007
- Sierra 2003-2006 * (2)
- Sierra Classic 2007 * (2)
- Top Kick C4500-C8500 2003-2009
- Yukon / Yukon XL 2003-2006 * (2)
- Hummer
- H2 2003-2007 * (3)
- H3 / H3T 2006-2010
- Isuzu
- Ascender 2003-2008
- H Series 2003-2008
- I Series pickups 2006-2008
- Oldsmobile
- Alero 2001-2004
- Bravada 2002-2004 * (1)
- Intrigue 2002
- Pontiac
- Aztec 2001-2005
- Grand Am 2001-2005
- Grand Prix 2004-2008
- Montana SV6 2005-2008
- Sunfire 2000-2005
- SAAB
- 9-7X 2005-2009
- Saturn
- Relay 2005-2007
*(1) These vehicles have a digital amplifier option. Please reference the Service Parts Identification sticker located in the glove box for the RPO code UQA. If UQA is present then the vehicle is equipped with a digital amplifier. Either use the AX-GMCL2-SWC or bypass the amplifier.
*(2) These vehicles have a digital amplifier option. Please reference the Service Parts Identification sticker located in the glove box for the RPO code Y91. If Y91 is present then the vehicle is equipped with a digital amplifier. Either use the AX-GMCL2-SWC or bypass the amplifier.
*(3) These vehicles are standard for a digital amplifier. Either use the AX-GMCL2-SWC or bypass the amplifier.
