Part Number: AXAMP-GM32

Details

This vehicle-specific 6-channel amplifier integration interface from Axxess is essentially a "digital LOC" that enables the installation of aftermarket amplifiers to OEM source units for enhanced sound quality while retaining the vehicle's original radio and features. This interface includes an external bass knob for additional audio output level adjustments.

Features:

• Designed for non-amplified systems
• Provides 6 channels of 5-volt RMS audio
• Non-fading full-range output (channels 5 and 6)
• Simple plug-n-play installation behind the radio
• Chime level adjustment
• No programming required
• Dual-colored LED feedback light
• Input: 50W per channel
• Amp turn-on trigger (DC): 250mA
• 2-channel S/PDIF out (front)
• 1-year warranty

Includes:

• AXAMP-GM31 Amplifier integration interface

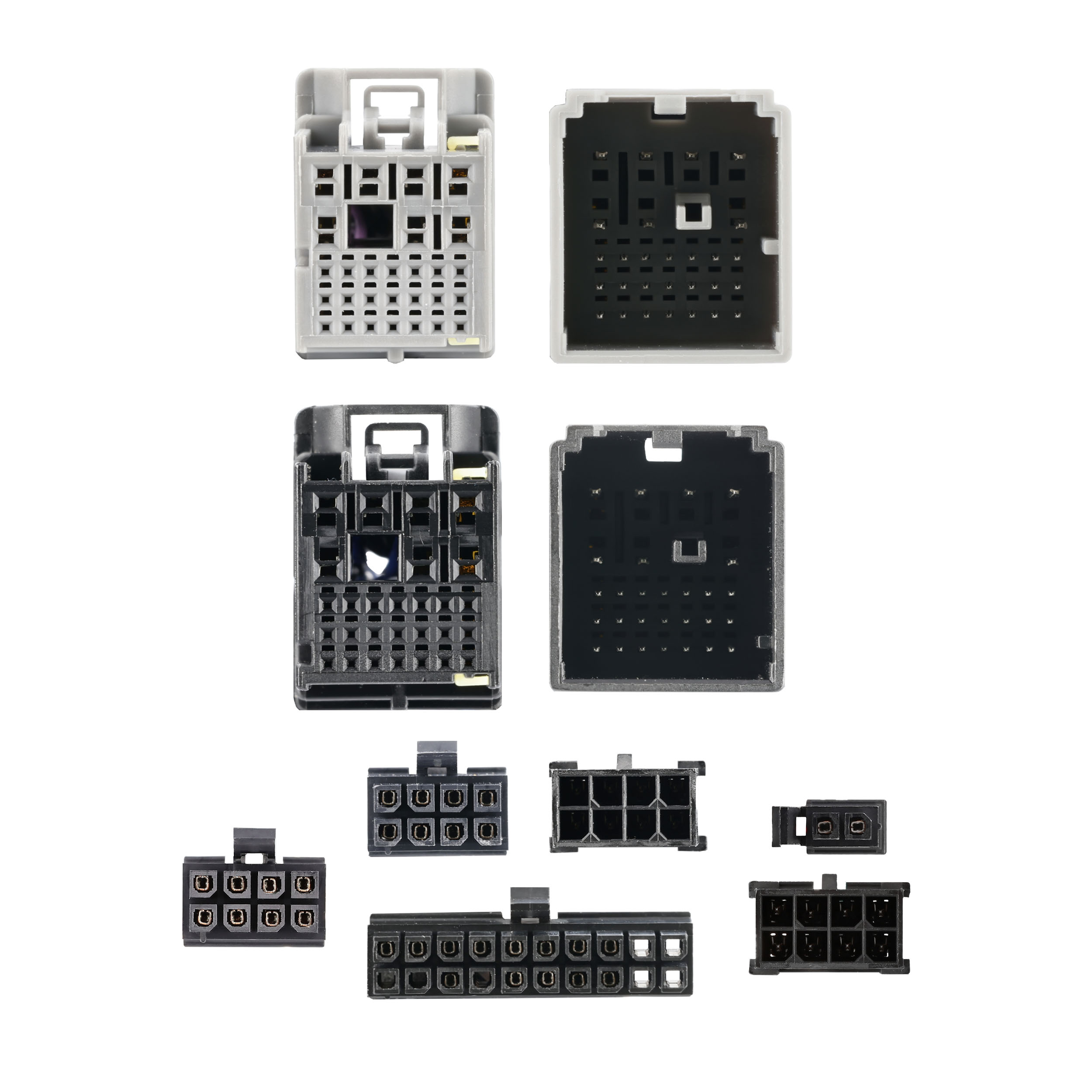

• AXAMP-GM31 'T' Harness
• Extension harnesses
• Resistor pad
• Bass knob
• Instruction sheet

Applications

• Buick
  • 2022-2023 Buick Envision
• Chevrolet
  • 2022-2024 Chevrolet Cheyenne
  • 2022-2026 Chevrolet Silverado 1500
  • 2024-2026 Chevrolet Silverado 2500 HD
  • 2024-2026 Chevrolet Silverado 3500 HD
  • 2021-2024 Chevrolet Suburban
  • 2021-2024 Chevrolet Tahoe
• GMC
  • 2023-2026 GMC Sierra 1500
  • 2024-2026 GMC Sierra 2500 HD
  • 2024-2026 GMC Sierra 3500 HD
  • 2021-2024 GMC Yukon
  • 2021-2024 GMC Yukon XL

Documents

Product Sheet.pdf

Instruction Manual

Video
