Part Number: HE-WLCAM
Details
Specs
- Dimensions: 4.4”W x 4.4”H x 1.3”D
- Input Voltage: 10-30V DC
- Color Temperature: 6000K
- Housing Material: die-cast aluminum
- Color: black
- Lens Material: PC
- Mounting Bracket: stainless steel
- Electronics: integrated-epoxy encapsulated
- Hardware: stainless 316
- Operating Temperature: -40?F to +140?F
- Protection: reverse polarity
Camera
- Lens Angle: 140°
- Image Device: 1/3 CMOS
- TV System: NTSC
- Resolution: 700 TVL
- Minimum Illumination: . 0.1 lux (day), 0 lux (night)
- Microphone: No

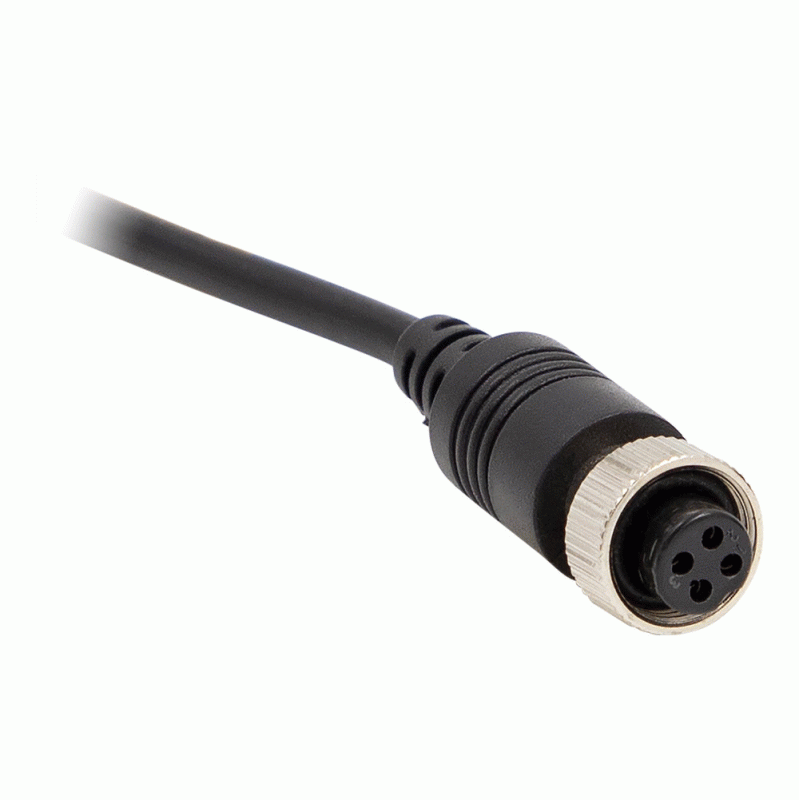

- Connector: 4-pin DIN
Light
- Light Type: 60° flood
- Lumen: 1154lm
- Color Temperature: 6000K
- Lens Material: PC
- LED Lamp Plate Voltage: DC12-32V
- IP Rating: IP69K
- Current Drain: 65mA (day)/ 2.335A (night vision)
- Operating Temperature: -4°F to 150°F

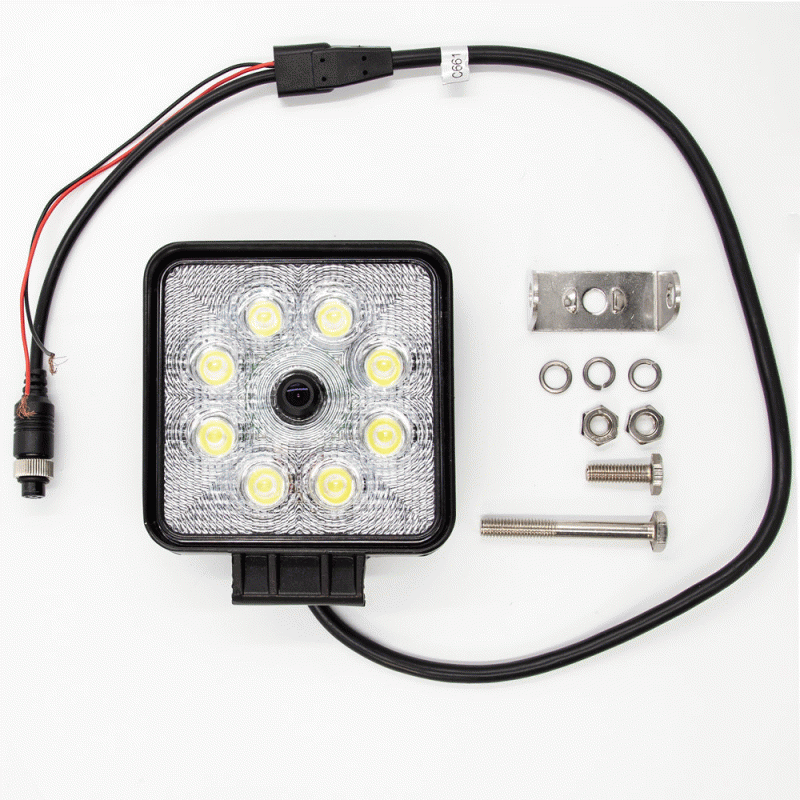

Mounting bracket and hardware included
