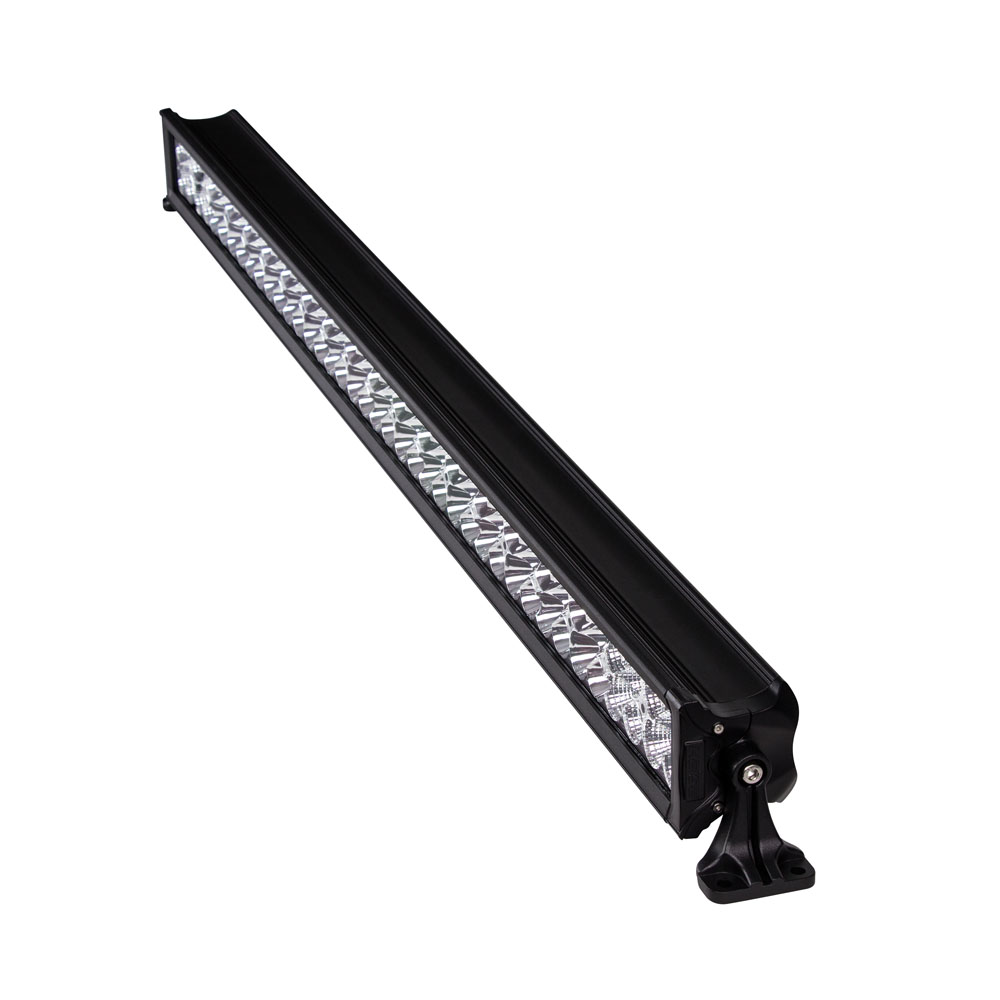

Part Number: HE-TR50

SPECS
Input Voltage: 10-30V DC
Wattage: 300W (100-3W OSRAM LEDs)
Raw Lumens: 24000
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION
Housing Material: Powder Coated Aluminum
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned outward – 53.125in
Mounting Bolt Drill – .25in
Length of Bar w/o Mounting Brackets: 50.50in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION
Operating Temperature: -40degC to +60degC
Current Consumption: 18 amps at 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
