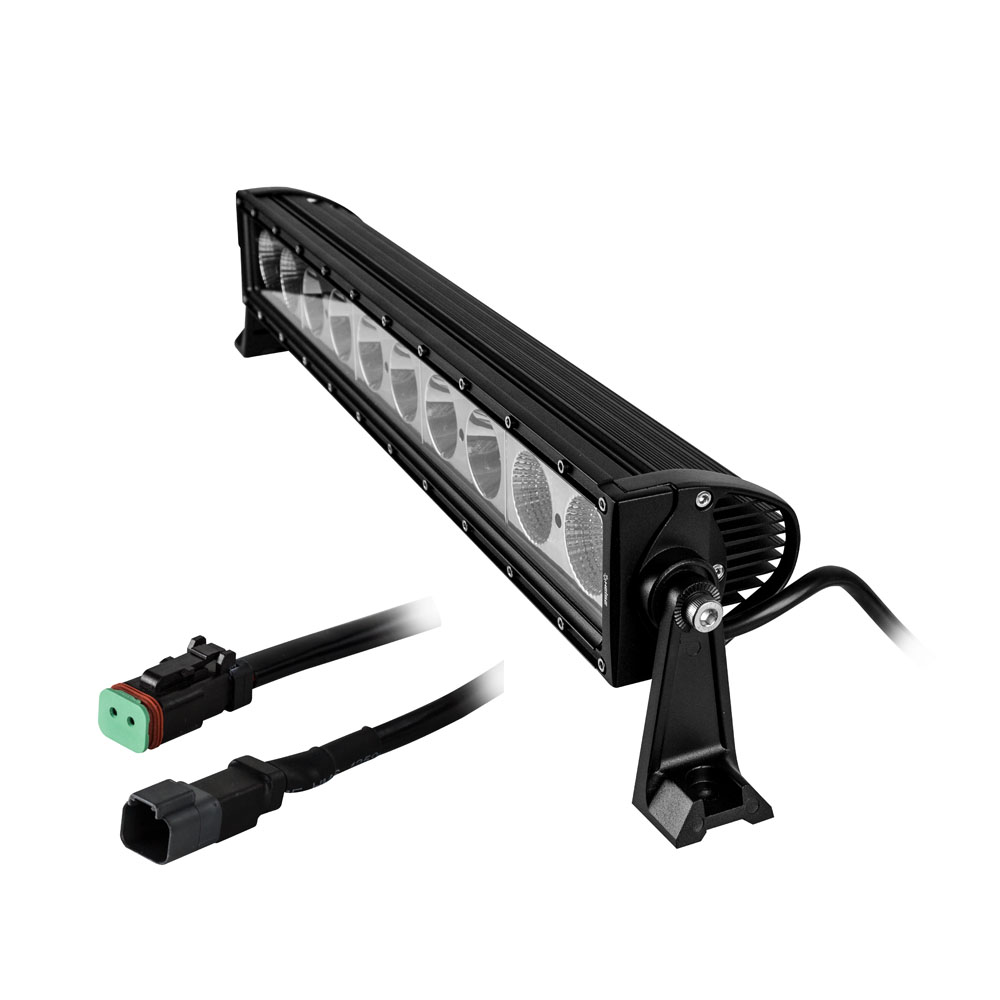

Part Number: HE-SR22

Details

• Advanced thermal management- short circuit and open circuit protection and many other innovative features.
• Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one lightbar.
• Heavy duty rubber foot mounts help reduce vibration for LED lightbars anywhere.

SPECS
Input Voltage: 10-30V DC
Power Consumption: 100W
(10-10W CREE LEDs)
Lumen Flux: 9000lm
Color Temperature: 6000K
Beam Pattern: Combo Flood 120°/ Spot 10°

CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 21.50in
Brackets turned outward – 23.75in
Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION
Operating Temperature: -40°C to +60°

IP Rating: IP67
Protections: Reverse Polarity
