Part Number: HE-HDRH22

Details

The heating element will activate below 41°F to assist with defrosting and de-icing of the lightbar and will automatically shut off when the temperature reaches 41°F or higher. This lightbar is torture-tested and IP67 rated to withstand the worst environments and has 120 watts with 10,800 lumens of light. It is designed with integrated advanced thermal management and a military breather port that allows moisture to escape and prevents fogging while defrosting the surface of the light for added visibility during snow season. This powerful lightbar is constructed with integrated-epoxy encapsulated electronics, a virtually unbreakable polycarbonate lens and die-cast aluminum housing. The hybrid 90-degree flood beam pattern offers a wide angle of illumination while the 8-degree spot beam provides intense light in the center flanked by the wide beam for extra coverage.These powerful lightbars are engineered with integrated-epoxy encapsulated electronics, a virtually unbreakable polycarbonate lens, a military breather port and die-cast aluminum housing. They have been torture-tested and are IP67 rated to withstand the worst environments and are available in lengths from 8 to 50 inches. The hybrid 90-degree flood beam pattern offers a wide angle of illumination while the 8-degree spot beam provides intense light in the center flanked by the wide beam for extra coverage.

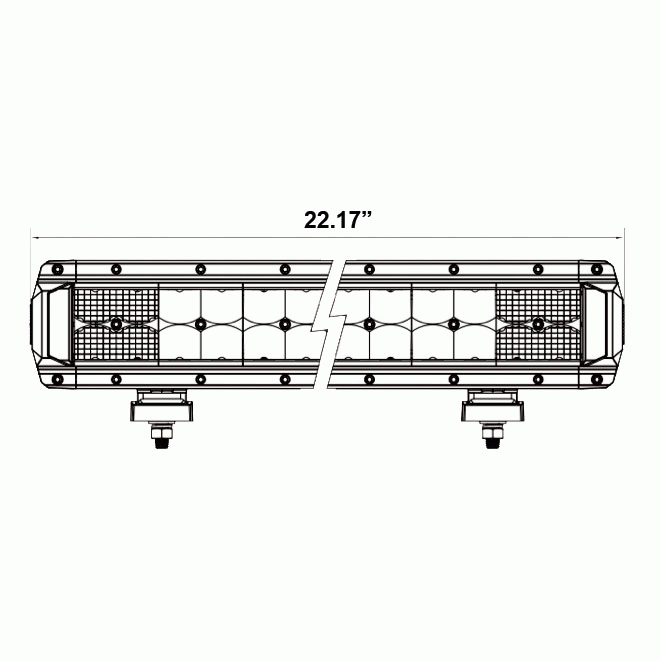

• Length: 22”
• Wattage: 120W
• Raw Lumens: 10,800 lm
• Current Consumption @ 13.8V: 8.27A
• IP Rating: IP67

Documents

HE-HDRxxxx_EMC_interference_graph.pdf

Product Sheet

Video
