Part Number: HE-HCL2S2PK

Description

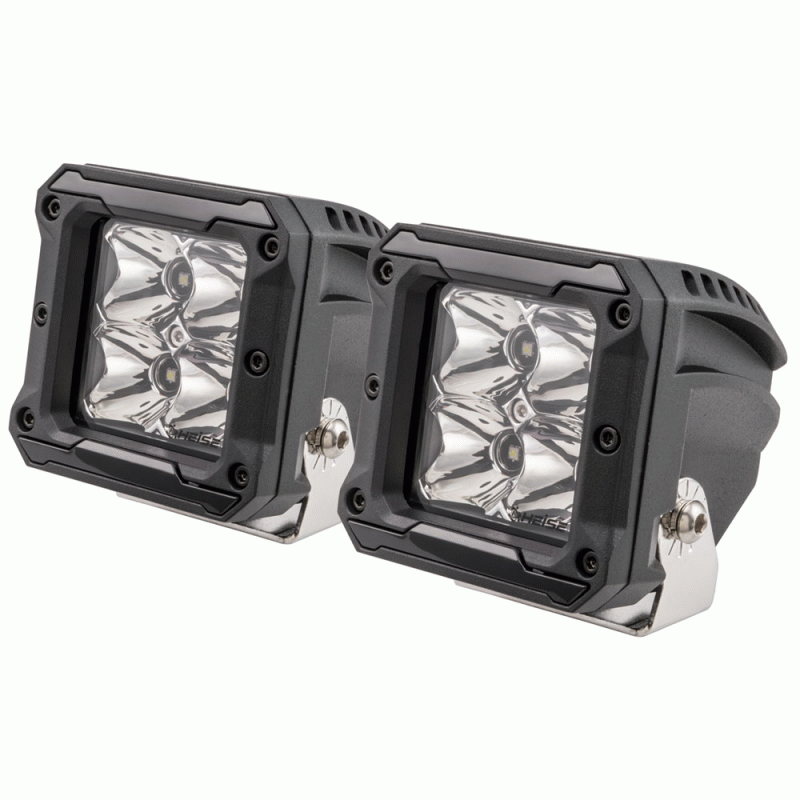

Includes Two HE-HCL2S2 lights with a Dual Light Wiring Harness included – HE-DLWH1

Focus your field of view with the narrow but powerful 8 degree spot beam LED cube light. These 3 Inch 4 LED cube lights provide 960 raw lumens from four 3-watt OSRAM LEDs for plenty of light. Replaceable color accent caps are included to customize the housing. Constructed of die-cast aluminum housing and a virtually unbreakable polycarbonate lens these cube lights are IP68 rated and can withstand the worst environments. It can get hit – shaken – banged up and wet – without fear of failure.

Specifications:
Input Voltage: 10-30V DC
Wattage: 12W (4-3W OSRAM LEDs)
Raw Lumens: 960
Lux at 10M: 380
Color Temperature: 6000K
Beam Pattern: 8 degree Spot

Construction:
Housing Material: Die-Cast Aluminum Housing
Housing Color: Dark Gray
Lens Material: PC
Mounting Bracket: Stainless Steel
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

Operation:
Operating Temperature: -40 degrees C to +60 degrees C
Current Consumption: .7 Amps at 13.8 Volts
IP Rating: IP68
Protections: Reverse Polarity

Specifications for the HE-DLWH1:

• Universal Plug and Play Wiring Harness with On-Off Rocker Switch
• 12V DC Relay
• 30A Fuse
• With 2-pin DT connectors for 2 Lamps
• With Waterproof Fuse Holder
• Set includes Wiring Harness and Switch
