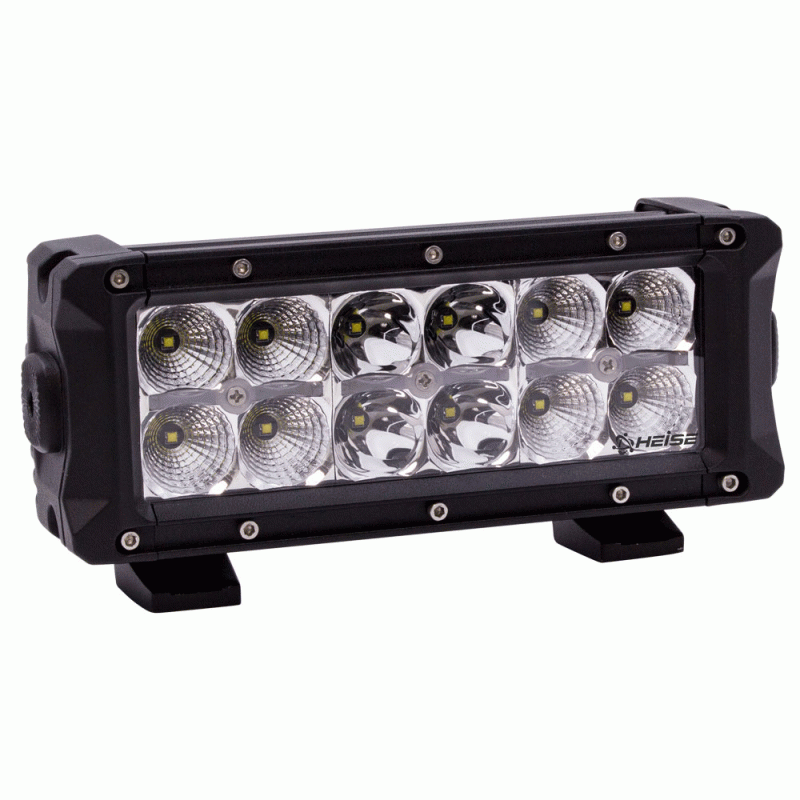

Part Number: HE-DRL8

Heise’s DRL Series dual-row lightbars have an integrated daytime running light in the center along the entire length of the bar, with a clean white light that provides additional visibility – day or night. The daytime running lights can be lit without the off-road lights being on and are powered by 6V to 24V circuits, using new 3-wire DT3 and ATP3 plugs and pigtails. Rated IP67 with a military grade metal breather port that allows moisture to escape. Built to last, featuring Heise’s proprietary torture-tested heavy-duty construction with a virtually unbreakable polycarbonate lens, backed by a limited lifetime warranty.

Specifications

• Input Voltage: 10-30V DC
• Power Consumption: 36W
• (12-3W white LEDs)
• Current Consumption: 2.6 amps at 13.8 volts
• Raw Lumen: 2880 LM
• Lux at 10m: 215 (white LEDs only)
• Color Temperature: 6000K
• Beam Pattern: Combo flood (90 degree) / spot (8 degree)

Construction

• Housing Material: Die-cast aluminum
• Housing Color: Black
• Lens Material: Polycarbonate
• Mounting Bracket: Die-cast aluminum
• Hole Dimensions: Brackets Turned Inward – 7.25”
• Brackets Turned Outward – 9.5”
• Mounting Bolt Drill – .25”
• Height of Lightbar: 3”
• Depth of Lightbar: 2.5”
• Length of Lightbar (without mounting brackets): 8”
• Electronics: Integrated-epoxy encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: -40 degrees C to +60 degrees C
• IP Rating: IP67
• Protections: Reverse Polarity
