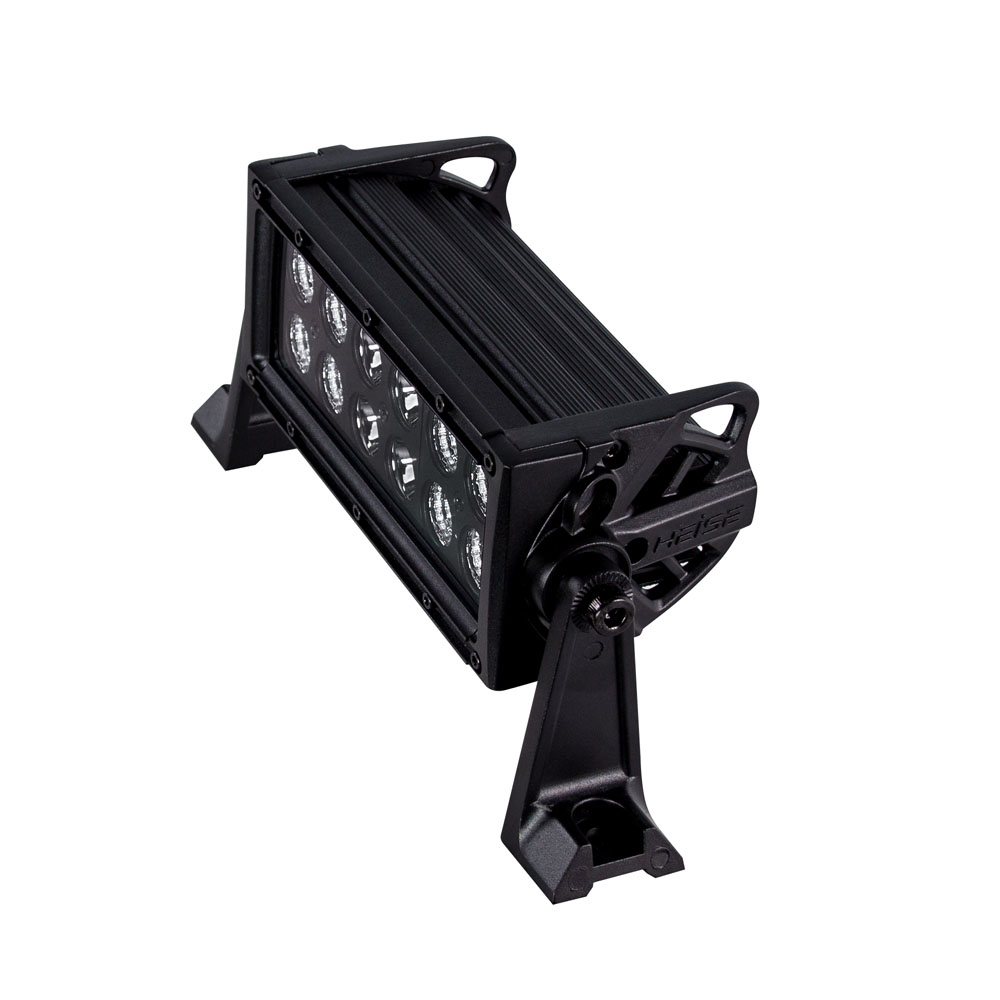

Part Number: HE-BDR8

SPECS
Input Voltage: 10-30V DC
Wattage: 36W (12-3W CREE LEDs)
Raw Lumens: 2880
Color Temperature: 6000K
Beam Pattern: Combo Flood 90°/ Spot 8°

CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 7.25in Brackets turned outward – 9.5in Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION
Operating Temperature: -40°C to +60°C

Current Consumption: 1.9 amps at 13.8 volts
IP Rating: IP68
Protections: Reverse Polarity
