Part Number: 99-6527B

Details

Metra introduces the very first TurboTouch kits. Once again Metra has created the industry standard for integration of an aftermarket head unit into a vehicle. By using Metra's patented Auto-Detect protocol and the patent pending design for a touchscreen based vehicle interface these new kits will lead the industry into the future.

The TurboTouch kits will display vehicle CAN Bus information on Metra's custom designed touchscreen and user interface. The touchscreen will provide factory HVAC control and personalization setting controls while maintaining steering wheel control functionality. The 8 backlit hard buttons color can be changed to over 250 different color options.

Also available will be any of the vehicles performance matrix information provided by the CAN Bus along with providing a convenient way to reset the check engine light.

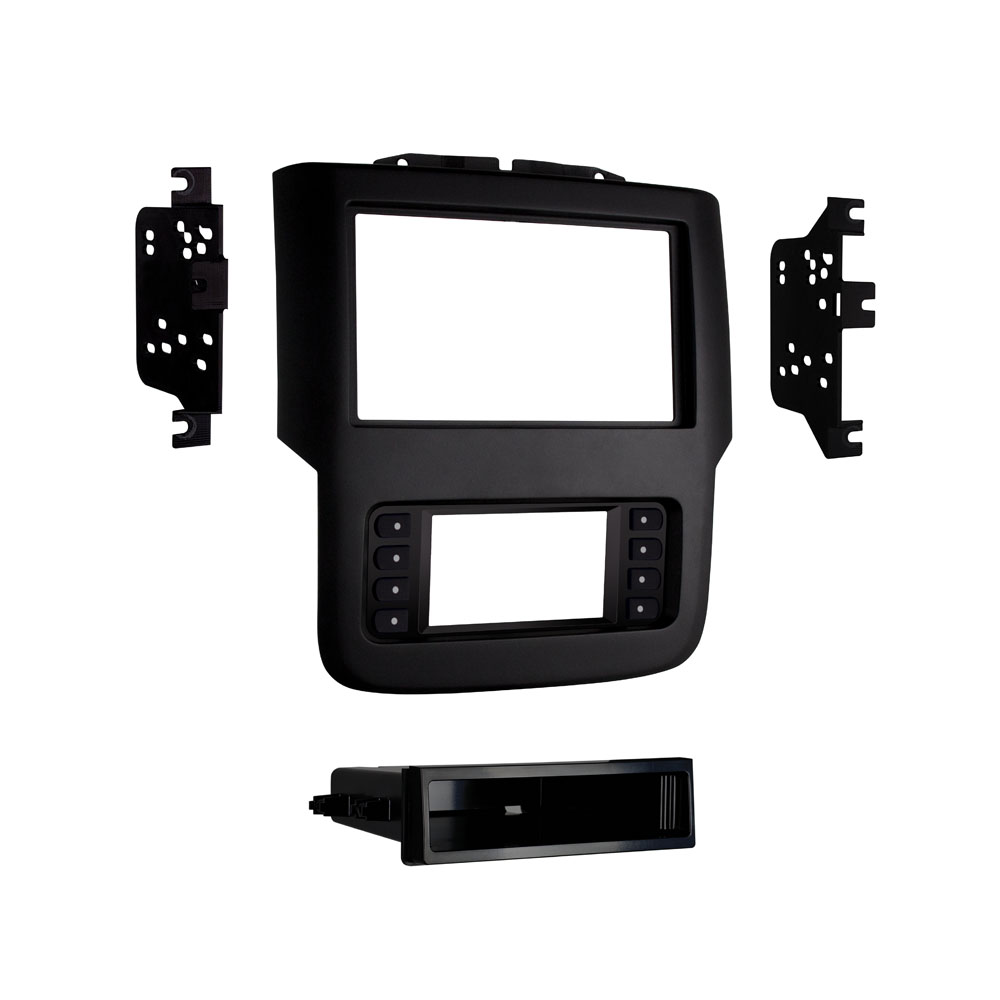

The TurboTouch kits come complete with everything needed to install an aftermarket head unit. They are painted to match the factory look of the dash and are engineered designed and built in the USA.

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Integrated 4.3 inch color touchscreen that displays the factory climate and personalization features
• Retains audio controls on the steering wheel
• Painted black to match the factory finish.

Notes:

a) The clock and compass in the drivers information center will no longer be functional.
b) The kit does not have the ability to adjust the Active-Level™ Four Corner Air-Suspension.
c) The kit does not retain the 5th wheel camera.
d) The kit does not retain the trailer brake adjustments.
e) The kit does not retain the key fob controller settings.

Interface features

• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains safety chimes
• Retains the factory backup camera
• Retains the factory AUX-IN jack
• Can be used in amplified or non-amplified models
• Retains balance and fade*
• Micro-B USB updatable

Applications

• Ram
  • 1500 2013-2017 (+)
  • 2500 2013-2017 (+)
  • 3500 2013-2017 (+)
  (+) With touchscreen

Wiring and Antenna Connections

• Harness
  • Axxess interface built into touchscreen
• Antenna Adapter
  • Included with kit
